STRUKTEC™

STRUKTEC™ Slimline® 10mm

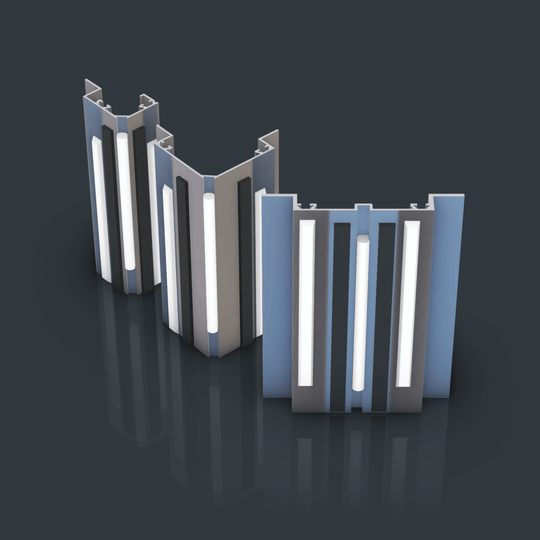

The components of the STRUKTEC™ Slimline® system are crafted from extrusion-grade aluminum, engineered to precise shapes and thicknesses.

The design of this system caters specifically to the installation of various facade surfaces, including sintered stone, porcelain, ceramics, thin stone, metals, and composite materials.

With a sleek depth of only 10mm, the Slimline® frame and adhesion system allow for easy vertical attachment in a consecutive parallel manner. This meets design requirements typically spaced between 400-600mm apart.

Our advanced chemical elastic system ensures secure adhesion of the facade surface to the frame while accommodating continuous expansion and contraction. It also provides instant panel positioning and includes a thermal break achieved through advanced structural bond tape or approved thermal break materials.

This versatile and elegant system is supplied as standard with a satin black frame. The joints between panels can be left open as a negative detail or filled with foam backing rod and flexible, neutral cure sealant in a colour to suit your project.

The system's design specifically caters to the installation of various facade surfaces, such as sintered stone, porcelain, ceramics, thin stone, metals, and composite materials.

STRUKTEC™ Tile Leveler

The STRUKTEC™ Tile Leveler is designed to work hand-in-hand with the Slimline® system, ensuring every panel or tile is perfectly aligned for a seamless finish.

Thanks to the STRUKTEC™ extrusion design, the leveler locks directly into the central ribs of the extrusion profile. This gives it the unique ability to retain inverted surface loads, making it ideal for challenging applications such as ceilings, soffits, and off-camber architectural details.

Crafted with the same precision mindset as the Slimline® components, the leveler keeps surfaces flat and consistent during installation, eliminating lippage between tiles or facade panels. This is especially important when working with materials like sintered stone, porcelain, or thin stone, where even the smallest misalignment can be visible.

By holding tiles securely in place while the advanced chemical elastic system cures, the tile leveler makes the installation process faster, cleaner, and more efficient. The result is a facade that not only looks flawless but also performs to the high standards STRUKTEC™ systems are known for.

Whether you’re working on vertical or horizontal applications, the STRUKTEC™ Tile Leveler brings accuracy and ease to the job site, a small but critical tool that protects the integrity of your design.
